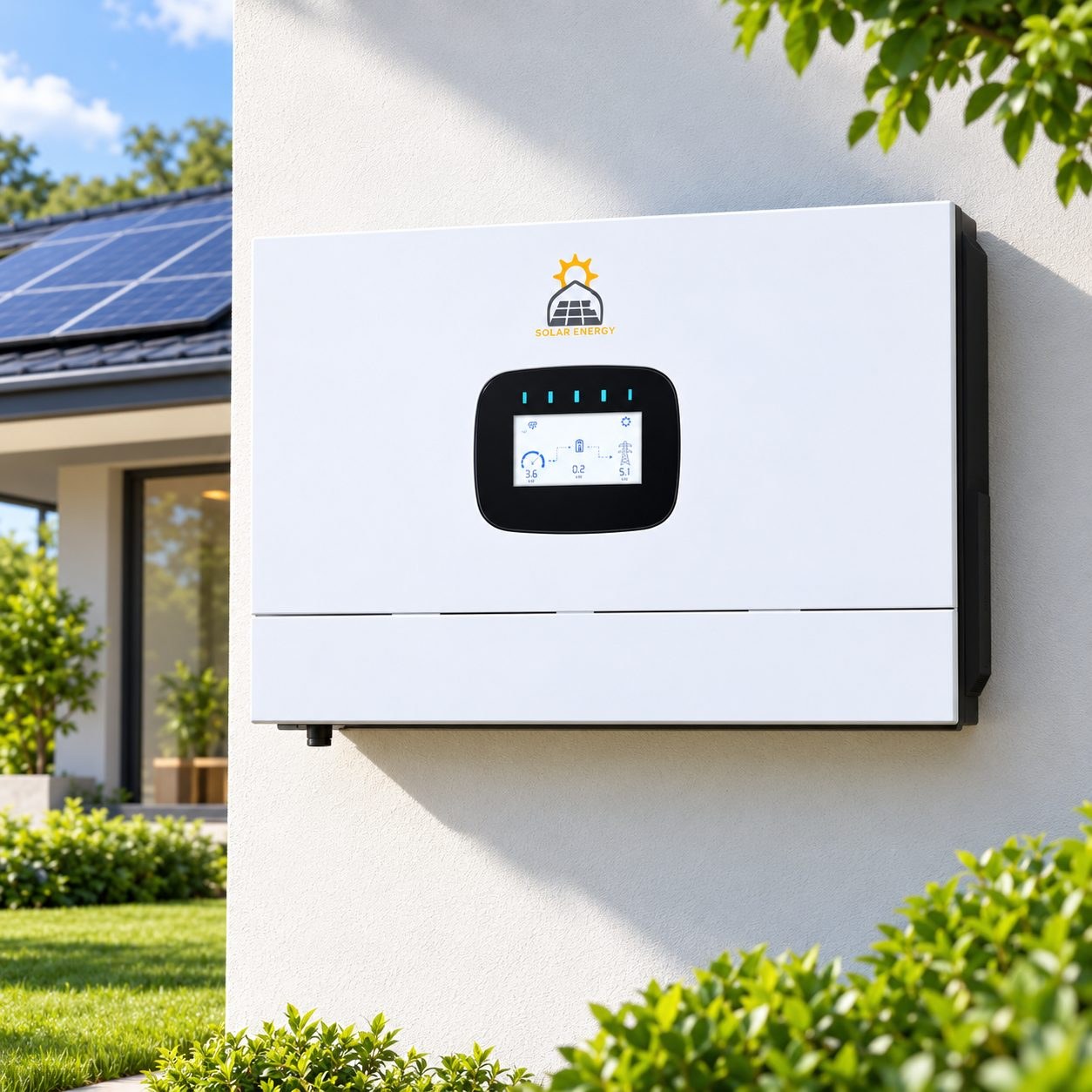

Hybrid Inverter Sunlight-12000TS 12KW 1 Phase
ราคา 27,900 บาท
Solar Energy Sunlight-12000TS 12KW 1 Phase
Hybrid On-off Grid
จุดเด่น / รายการในชุด
- Solar Input ,AC Input Data(Grid&Generator) ,Battery
- Battery Type Li-Ion/Lead-acid
- Li-Ion Battery Activation Yes
- Inverter Output Data
- Voltage Waveform Pure Sine wave
- 30s@102%-110% load；10s@110%-130% load；
- Overload Protection
- 5s@130%-200% load
- Efficiency
- Protection
- DC Surge Protection Yes
- AC Surge Protection Yes
- AC Short circuit Protection Yes
- System Parameters
- Cooling Method Fan Cooling
- Characteristic
- Display LCD&APP
สเปกสินค้า
| Sunlight | 12000 TS |
|---|---|
| Max. PV Input Power | 18000W |
| Max. Input Voltage | 500V |
| Start-up Voltage | 120V |
| MPPT Voltage Range | 90V~450V |
| Max. Input Current per MPPT | 30A/30A |
| Max. Short Circuit Current per MPPT | 44A/44A |
| Number of MPPT | 2 |
| Nominal Input Voltage | 230Vac，L/N/PE |
| Input Voltage Range | 90~280Vac |
| Max. Input Current Grid | 70A/Generator 60A |
| Nominal Input Power | 12000W |
| AC Frequency Range | 50/60Hz(Auto sensing) |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 42~60V |
| Max. Charge/Discharge Current | 250A/280A |
| Max. Charge Power | 12000W |
| Li-Ion Battery Communication CAN/RS | 485 |
| Max. Solar Charge Current | 250A |
| Max. AC Charge Current | 210A |
| Max. Charge Current (PV+AC) | 250A |
| Nominal Output Power | 12000W |
| Peak Apparent AC Power | 24000VA |
| Nominal AC Voltage | 230V |
| Nominal Grid Frequency | 50/60Hz |
| Transfer Time | 10ms |
| Max. Output Current | 52.1A |
| THDv (@linear load) < | 3% |
| Peak Efficiency | 94% |
| MPPT Efficiency ≥ | 99.9% |
| Dimension (W*H*D) | 625*400*120mm |
| Weight | 20kg |
| Relative Humidity | 5%~95% (Non-condensing) |
| Operating Temperature Range - | 10℃~60℃ |
| Noise Emission ≤ | 50dB |
| Altitude | 2000m |
| Ingress Protection IP | 21 |
| Number of AC Output | 2 |
| Communication Interface RS | 485/ USB /CAN/ Wi-Fi |
| Parallel Capability | 9 |
