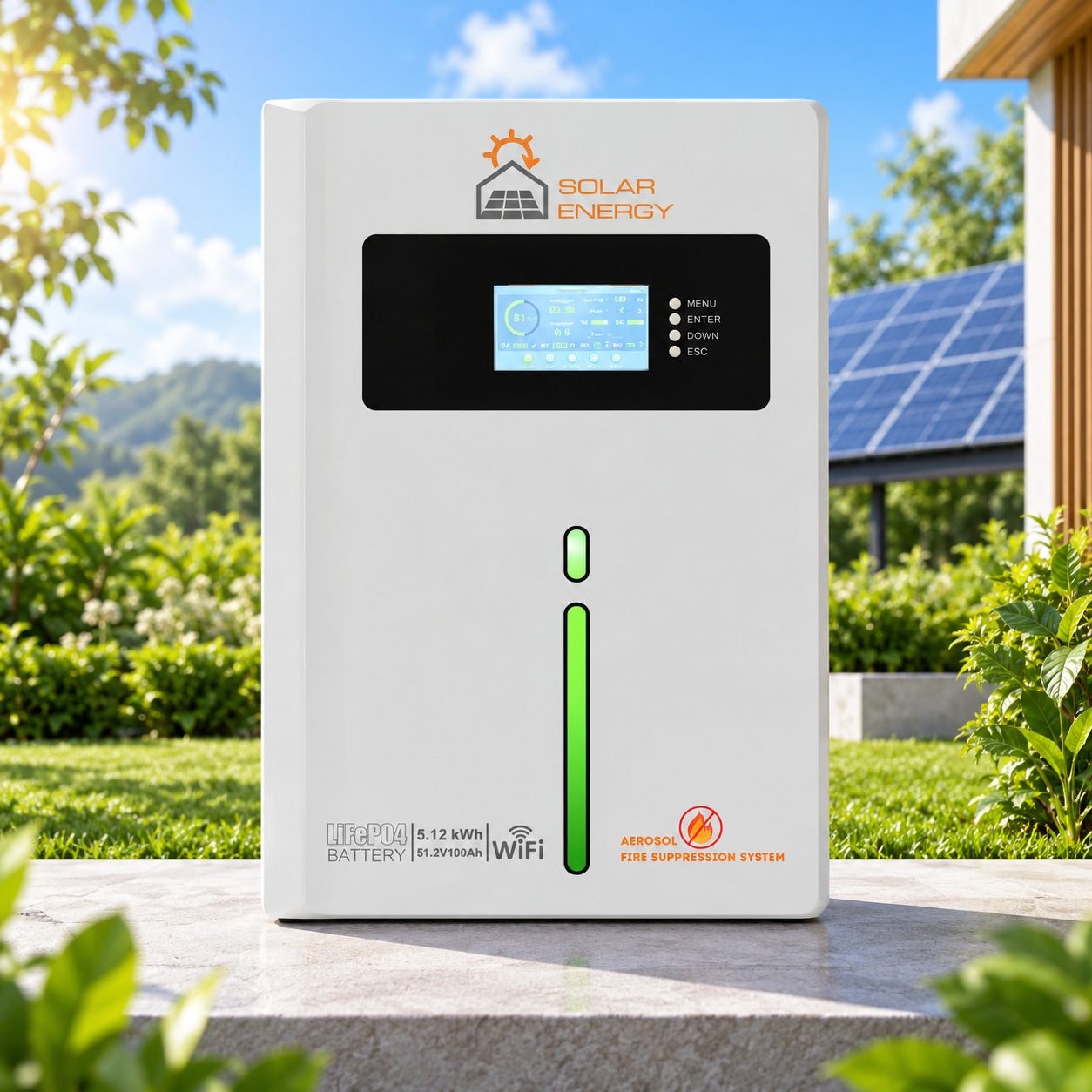

BATTERY Solar Energy SE-100MAX
ราคา 27,900 บาท
BATTERY Solar Energy SE-100MAX 51.2V 100AH (5.12kWh)
จุดเด่น / รายการในชุด
- Total Energy 5.12kWh
- Max. DIscharge Power 5.76kw
- Rated Capaclty 100Ah
- Voltage Range 51.2VDC
- Nominal Voltage 44.8V~57.6V
- Charge /Discharge Current 50A
- Operating Condition LED indicator light
- Operating Temperature Range 0°C~55°C
- Storage Temperature Range -20°C~55°C
- Protective Class / IP Rating IP20
- Display type LCD
- Parallel or Serles Support (Maximum) 15pcs
สเปกสินค้า
| Product Model Model | SE-100MAX |
|---|---|
| Total Energy | 5.12kWh |
| Max. DIscharge Power | 5.76kw |
| Rated Capaclty | 100Ah |
| Voltage Range | 51.2VDC |
| Nominal Voltage | 44.8V~57.6V |
| Charge /Discharge Current | 50A |
| Cycle Life | 8,000Cycle at 80% DOD ,0.5C ,25℃ |
| Operating Condition | LED indicator light |
| Operating Temperature Range | 0°C~55°C |
| Storage Temperature Range | -20°C~55°C |
| Protective Class / IP Rating | IP20 |
| Display type | LCD |
| Parallel or Serles Support (Maximum) | 15pcs |
| Relative Humidity (RH) | 0°C~+35°C |
| Cooling Type | Amblent cooling |
| Case Material | Metal |
| Installation | Wall-Mounting / Floor-Mounting |
| Warranty /Cycle | Life Cycles 10 years at 8000 Cycles, 0.5C ,DOD 80%,80% SOH, Temp 25±2°C |
| Communication | CAN/RS485/WIFI/Bluetooth |
| Protection Mode | Triple Hardware Protection |
| Fire Suppression | Integrated condensed aerosol |
| Battery Protection | Over-Current / Over-Voltage / Short Circult / Under-Voltage / Over-Temperature |
| Product Weight Approximate | 55kg±0.5kg |
| Package Weight Approximate | 62kg±0.5kg |
| Product Dimension | 430*246*600mm |
| Package Dimension | 470*405*640mm |
| Transport | UN38.3 (tested); UN3480 as applicable |
สนใจสินค้าหรือต้องการให้ทีมงานออกแบบระบบ โทร 085-253-8123 หรือ LINE @b2hsolar
