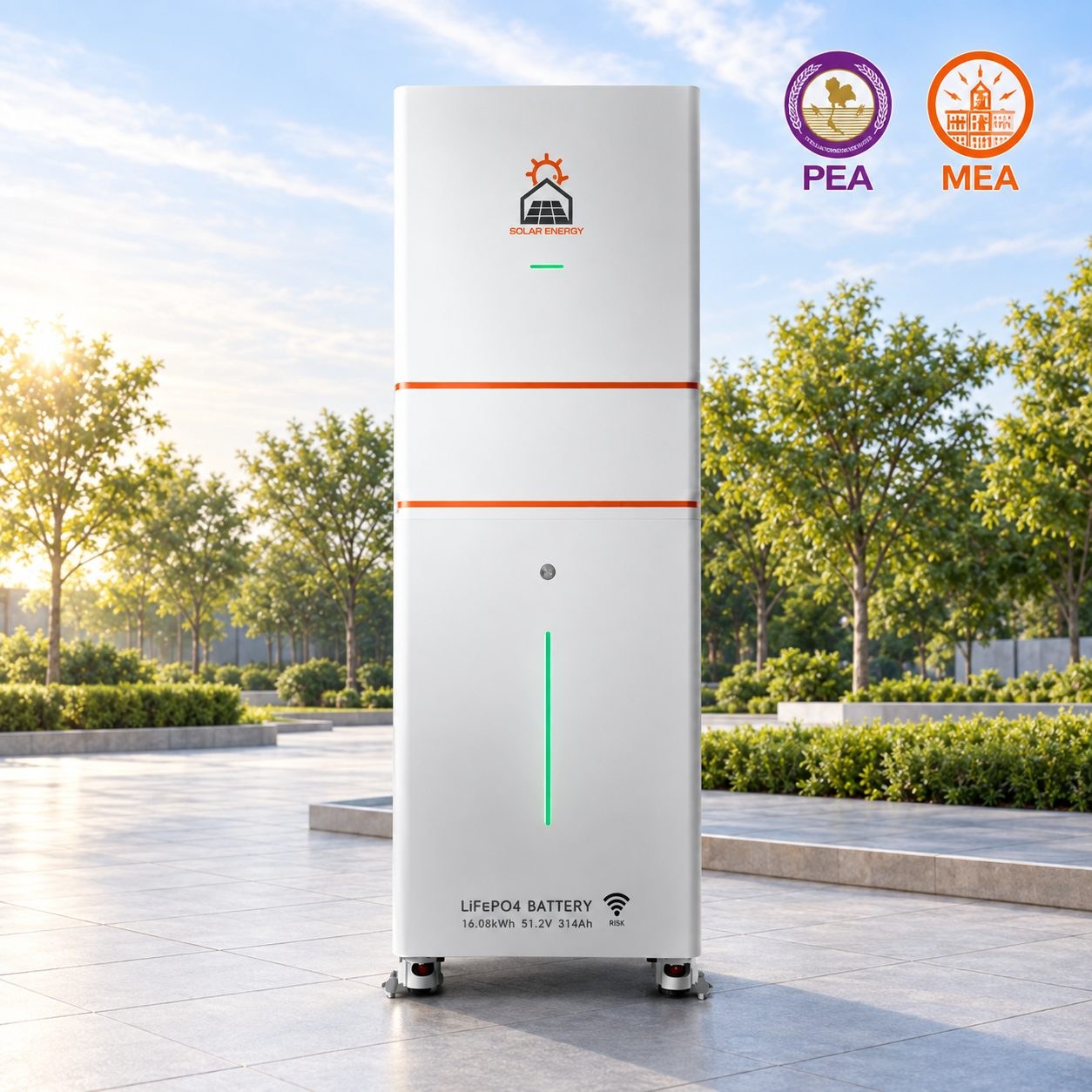

ALL IN ONE Sunlight 6000s 6kw +แบตเตอรี่ 16.07 kWh
ราคา 109,000 บาท
ALL IN ONE Sunlight 6000s 6kw +แบตเตอรี่ 16.07 kWh
Specification
Operating Condition LED indicator light
Display type LCD
Parallel or Serles Support (Maximum)
15pcs
Cooling Type Amblent cooling
Case Material Metal
Installation Floor-Mounting
Protection Mode Triple Hardware Protection
Fire Suppression Integrated condensed aerosol
Battery Protection Over-Current / Over-Voltage / Short Circult / Under-Voltage / Over-Temperature
สเปกสินค้า
| INVERTER | |
|---|---|
| Battery input number | 1 |
| Rated battery voltage | 51.2V |
| Battery voltage range | 42V-58V |
| Max voltage | 60V |
| Rated charging and | 5kW |
| Max charging and | 100A |
| Interface RS | 485/CAN |
| PV input number | 2 |
| Max input power | 9000Wp |
| Max inout voltage | 600V |
| Sunlight | 6000S |
| Starting voltage | 95V |
| MPPT Voltage range | 80~550V |
| MPPT Full load voltage | 350~500V |
| Rated voltage | 360V |
| MPPT number | 2 |
| MPPT string | 1 |
| MPPT Max input current | 18A/18A |
| MPPT max short circuit | 22A/22A |
| Rated output power | 6000W |
| Max input power of grid | 6000W |
| Max output current | 27.2A |
| Max input current of grid | 27.2A |
| Rated grid connected | 220V/230V/240V |
| Voltage range of grid | 184-276V |
| Rated grid frequency | 50Hz |
| Grid frequency range | 45Hz~65Hz |
| Power factor ~ | 1(0.8speed-up-0.8lag) |
| THDi(@rated power) < | 3% |
| Rated output power | 6kVA |
| Max output power | 6kVA |
| Max output current | 27.2A |
| Rated output voltage | 230V |
| Rated output frequency | 50Hz |
| THDu （ @Linear Load ） < | 2% |
| On/off grid switching time < | 20ms |
| Efficiency in Europe | 97.5% |
| Maximum efficiency | 98% |
| Maximum battery charging | 95.2% |
| Size | 500mm*470mm*180mm |
| Weight | 21kg |
| Standby power loss ≤ | 10W |
| Temperature range - | 25 ℃ ~+60 ℃ （ >40 ℃ ， Power reduced operation ） |
| Humidity range | 0~100% |
| Noise < | 25dB （ A ） |
| Allowable altitude < | 4000m（ ≤: 3000m full load ， Reduce power by 5% for every 100m increase ） |
| IP Grade IP | 65 |
| Monitoring LED/APP/WIFI/ | 4G/Bluetooth （ Optional ） |
| Communication port RS | 485/CAN/DRED/Dry contact/Parallel |
| Parallel Max | 6 units in parallel |
| CE-LVD IEC | 62109-1, IEC 62109-2, EN 62109-1, EN 62109-2 ， IEC62477-1 |
| CE-EMC EN | 61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4,EN 62920 |
| แบตเตอรี่ | |
| Product Model Model | SE- 314 HS |
| Total Energy | 16.07kWh |
| Max. DIscharge Power | 11.52kw （ According to the inverter ） |
| Rated Capaclty | 314Ah |
| Voltage Range | 51.2VDC |
| Nominal Voltage | 44.8V~57.6V |
| Charge /Discharge Current | 150 A |
| Operating Temperature Range | 0 ℃ ~55 ℃ |
| Storage Temperature Range - | 20 ℃ ~55 ℃ |
| Dimensions (W x D x H) | 485 × 246 × 720 |
| Protective Class / IP Rating IP | 20 |
| Relative Humidity (RH) | 0°C~+35°C |
| Warranty /Cycle Life Cycles | 10 years at 8000 Cycles, 0.5C ,DOD 80%,80% SOH, Temp 25 ± 2 ° C |
| Communication CAN/RS | 485/WIFI/Bluetooth |
| Product Weight Approximate | 108 kg ± 0.5kg |
| Product Dimension | 420 × 2 45 × 885 mm |
| Transport UN | 38.3 (tested); UN3480 as applicable |
